A punch machine is a stamping press. Stamping production is mainly for plates. Through the mold, it can make blanking, punching, forming, deep drawing, trimming, fine blanking, shaping, riveting and extrusion parts, etc., which are widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases, and even missile aircraft... There are a lot of accessories that can be produced through molds with a punch.

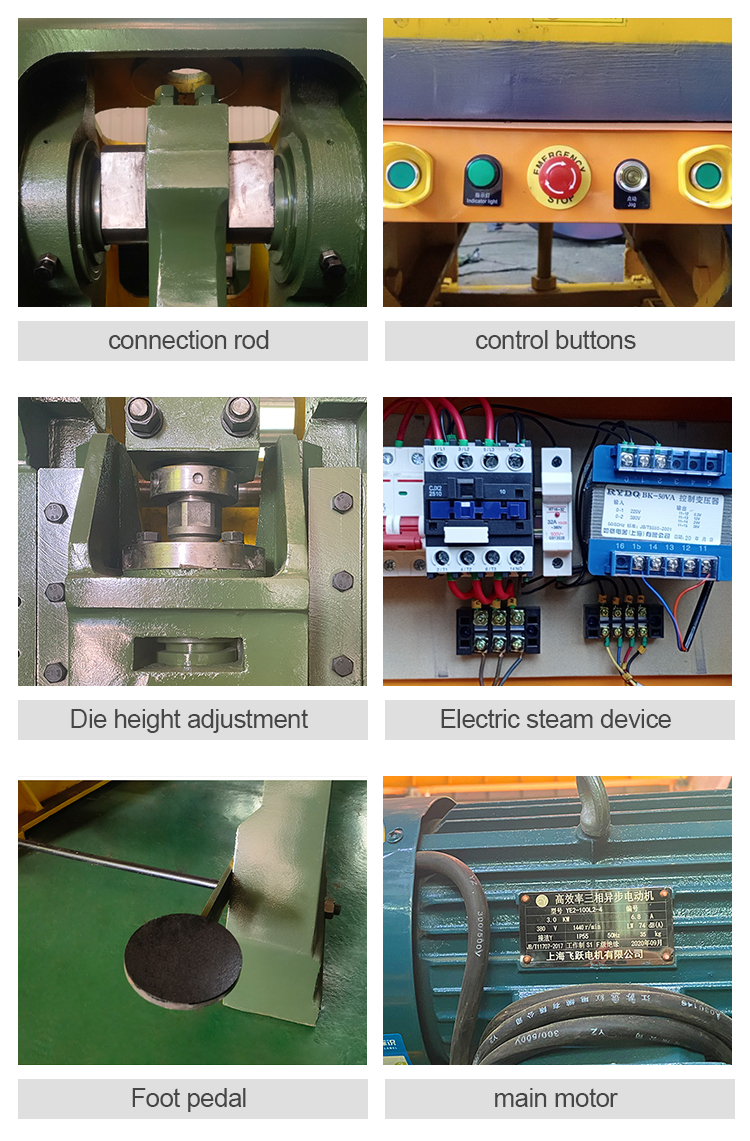

Gambar Details
Spesifikasi
| Item | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
| Tekanan Nominal | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
| Slide stroke (Times/min) | 145 | 140 | 70 | 55 | 50 | 45 | 45 | 38 |
| Geser stroke | 50mm | 60 mm | 70mm | 100 mm | 110mm | 115mm | 130 mm | 150 mm |
| Max nutup dhuwur | 150 mm | 170mm | 200 mm | 300 mm | 330 mm | 380 mm | 380 mm | 500 mm |
| Die imbuhan dhuwur | 40mm | 40mm | 40mm | 70mm | 80 mm | 80 mm | 100 mm | 100 mm |
| Jarak antarane pusat panggeser lan mesin | 130 mm | 160 mm | 180mm | 215mm | 230mm | 250 mm | 280mm | 390 mm |
| Workbench diameter(mm) | 240x360 | 300x480 | 320x525 | 400x650 | 440x700 | 480x750 | 540x840 | 720x1100 |
| Jarak kutub | 180mm | 220mm | 240mm | 300 mm | 300 mm | 300 mm | 380 mm | 550 mm |
| diameteripun bolongan Shank | 30mm | 35mm | 40mm | 50mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Ambane bolongan Shank | 50mm | 60 mm | 60 mm | 70mm | 70mm | 80 mm | 80 mm | 75 mm |
| Ketebalan pad | 50mm | 50mm | 50mm | 75 mm | 80 mm | 95mm | 100 mm | 130 mm |
| Sudut miring awak | 30° | 20° | 20° | 20° | 20° | 20° | 20° | 13° |
| daya motor | 1.5Kw | 1.5KW | 2.2KW | 3KW | 4KW | 7,5KW | 7,5KW | 11 Kw |
| Bobot | 450Kg | 750KG | 1500KG | 2500KG | 4000KG | 5000KG | 6000KG | 7000Kg |
Standard Execution
* JIS I accuracy.v
* Steel welded frame with high rigidity.
* Motor with inverter.
* Combined wet friction clutch.
* Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
* Hydraulic overload protector.
* Lifting balance cylinder.
* Imported dual solenoid valve.
* Forced grease lubrication.
* Balance cylinder: manual oil lubrication.
* Integrated panel (elec.cam included).
* PLC control of international brand.
* Contactor and button of international brand.
* CE safety specifications
* Optional: air cushion, light curtain, automotive device. Company Profile
FAQ
1. sapa kita?
We are based in Anhui, China, start from 2012,sell to Mid East(25.00%),Western Europe(18.00%),Eastern Europe(17.50%), North America(15.30%),Southern Europe(12.30%),Africa(10.80%),South America(7.50%). There are total about 51-100 people in our office.
2. carane kita bisa njamin kualitas?
Tansah sampel pra-produksi sadurunge produksi massal;
Tansah inspeksi pungkasan sadurunge dikirim;
3. apa sampeyan bisa tuku saka kita?
Saluran saluran otomatis, Rem Tekan, Mesin Pemotong Laser, Mesin Gunting, Mesin Punch
4. kenapa sampeyan kudu tuku saka kita ora saka supplier liyane?
We are manufacturer and trading company of metal sheet cutting, bending, shearing, punching, rolling machine tools with
professional technician team and complete factory fabrication solution.
5. layanan apa kita bisa nyedhiyani?
Katentuan Pangiriman sing Ditampa: FOB, CFR, CIF;
Mata uang Pembayaran Ditampa:USD,EUR,CNY;
Jinis Pembayaran sing Ditampa: T/T,L/C,D/PD/A,MoneyGram,Kartu Kredit,PayPal,Western Union;
Language Spoken: English, Spanish, Japanese, Russian
Rincian
- CNC utawa Ora: Normal
- Kondisi: Anyar
- Tipe Mesin: Mesin Punching
- Sumber Daya: Mekanik
- Panggonan Asal: Anhui, China
- Daya Motor (kW): 1.5
- Model Number: J21S-16T
- Weight (T): 0.73
- Titik Sade Utama: Gampang Dioperasi
- Garansi: 1 Taun
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Lokasi Showroom: Ora ana
- Jinis Pemasaran: Produk Anyar 2021
- Laporan Uji Mesin: Disedhiyakake
- Video metu-mriksa: kasedhiya
- Garansi komponen inti: 1 Taun
- Komponen inti: Motor
- Layanan sawise-sales Disedhiyakake: Dhukungan online
