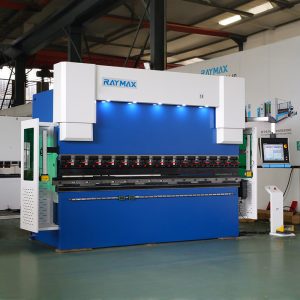

Wc67k Hydraulic Press Brake Machine Price Cnc Press Brake

The main performance characteristics：

1. Konstruksi baja sing dilas, getaran kanggo ngilangi stres, kanthi kekuatan dhuwur lan kaku sing apik.

2. Hydualic top-drive, steadiness lan linuwih. Mandeg mekanik, bar torsi baja njaga sinkronisasi, presisi dhuwur.

3. Motorize-adjustinf piranti backgauge lan rams stroke, nggoleki nyetel dening handwheel, tampilan angka.

REM PRESS HIDROLIK

1. Ngadopsi sistem kontrol hidrolik terpadu, luwih dipercaya lan gampang kanggo pangopènan. katup hidrolik utama saka Bosch (Jerman)

2. Kabeh pipa, flange lan sambungan karo getaran bukti lan bocor desain lan setelan bukti.

3. Kakehan overflow pangayoman wis outfitted kanggo sistem hydraulic, kang bisa njamin ora bocor, lan tingkat lenga bisa maca utawa katon langsung.

4. Sistem hidrolik digawe selaras karo peraturan saiki.

SISTEM ELEKTRO

1. Electrical Cabinet under theinternational Standard, safe and reliable, strong anti interference capability.

2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate

SISTEM KONTROL SYNCHRO

1. Sistem paten kanggo paralelisme sing tepat lan akurasi baleni sing dhuwur

2. Worktable adopts desain tartamtu, nyuda crowning jumlah distorsi alat ngisor èfèktif.

3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures theparallelism between beams is used for the synchronism.

Model	Daya nominal	table length	Jarak antarane kolom	ambane tenggorokan	Stroke panggeser	Maximum opening height between worktable and slider	Daya motor utama	Machine tool size (L x W x H)	Bobot mesin
Units	kn	mm	mm	mm	mm	mm	kw	mm	kg
63/3200	630	3200	2700	250	100	400	5.5	4340×1460×2420	6000
100/3200	1000	3200	2700	320	150	450	7.5	3450×1450×2600	8000
160/3200	1600	3200	2700	320	200	465	11	3250×2535×2920	13000
250/3200	2500	3200	2700	400	250	560	15	4000×2250×4060	18400
250/4000	2500	4000	3300	400	250	560	15	4800×2250×4060	20000
250/5000	2500	5000	4100	400	250	560	15	5800×2250×4060	22000
250/7000	2500	7000	6250	400	250	560	15	7800×2250×4160	25000
320/4000	3200	4000	3300	400	250	560	22	4060×2570×4560	22000
320/5000	3200	5000	4300	400	250	560	22	5060×2570×4560	24510
320/6000	3200	6000	5300	400	250	560	22	6060×2570×4560	27020
400/4000	4000	4000	3100	400	320	625	37	4050×3240×3880	29950
400/5000	4000	5000	4210	400	320	625	37	5050×3240×3880	37000
400/6000	4000	6000	5100	400	320	625	37	6050×3240×3880	44050
500/4000	5000	4000	3100	400	320	630	37	4090×2965×5320	32700
500/5000	5000	5000	4100	400	320	630	37	5090×2965×5320	39750
500/6000	5000	6000	5100	400	320	630	37	6090×2965×5320	46800
630/5000	6300	5000	4100	400	320	710	45	5050×4910×3200	67950
630/6000	6300	6000	5100	400	320	710	45	6050×4910×3200	75000
800/5000	8000	8000	6700	350	400	750	55	9500×3000×6050	100000

FAQ

1: Kepiye carane milih mesin sing paling cocog?

A: Mangga ngomong spesifikasi sampeyan, kita bisa milih model sing paling apik kanggo sampeyan, utawa sampeyan bisa milih model sing tepat.
Sampeyan uga bisa ngirim gambar produk, kita bakal milih mesin sing paling cocog kanggo sampeyan.

2: Apa produk utama perusahaan sampeyan?

A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine,Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on .

3: Where is pabrik kita dumunung? Kepiye carane aku bisa ngunjungi?

A : Our factory is located in Anui Province, China. You are warmly welcomed to visit us.

4. Apa istilah dagang sampeyan?

A: FOB, CFR lan CIF kabeh ditrima.

5: Apa Ketentuan Pembayaran?

A: T / T, pembayaran dhisikan 30% nalika pesenan, pembayaran imbangan 70% sadurunge kiriman; LC sing ora bisa dibatalake.

6: What's the MOQ?

A: 1 set. (Mung sawetara mesin biaya murah bakal luwih saka 1 set)
